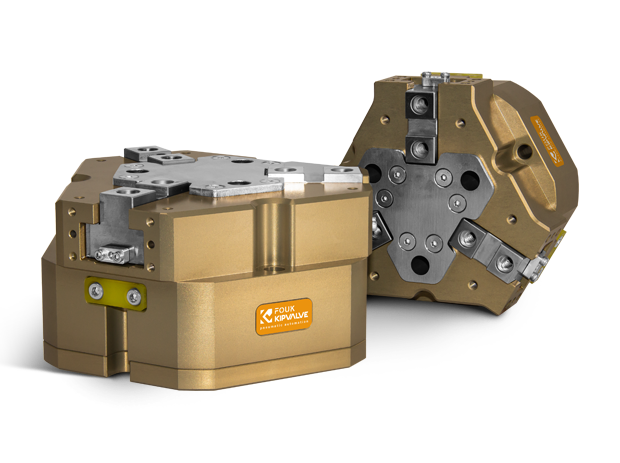

Centering grips

Centric pneumatic grippers are 3‑ and 4‑finger grippers for precise centering of round parts. Their centering kinematics ensure axial alignment without extra positioning steps, reducing cycle time and improving accuracy. The range covers tasks from lightweight bushings to heavy shafts.
Features
  • Precise axial centering ensures stable positioning during assembly and machining.
  • Clamping force is evenly distributed around the circumference, preventing surface deformation.
  • High repeatability of ±0.01–0.02 mm for automated and robotic cycles.
  • Suitable for both external and internal gripping of cylindrical parts.
Centering grips
Submit a request, and we will select the equipment according to your inquiry

Equipment matching

Fill out the form, and our specialists will select the necessary equipment for you



    By clicking the "Submit" button, I consent to the processing of my personal data in accordance with the Privacy Policy

    VGFZ

    VGFZ

    Series VGFZ centric grippers with toothed guide, jaw stroke from 4 mm to 45 mm. Workpiece operating weight from 1.67 kg to 220. Gripper fingers quantity: 3
    All about VGFZ series in PDF
    Model Stroke per jaw, mm Opening force, N Closing force, N Workpiece weight, kg Gripper weight, kg STEP PDF 3D
    VGFZ34-68 6 76×P 69×P 1.7 0.35
    VGFZ42-78 6 116×P 106×P 3 0.5
    VGFZ55-100 8 198×P 172×P 5 0.8
    VGFZ55-100-S 4 396×P 344×P 10 0.8
    VGFZ70-125 10 310×P 280×P 8 1.6
    VGFZ70-125-S 5 650×P 600×P 18 1.7
    VGFZ90-155 13 515×P 490×P 15.5 2.7
    VGFZ90-155-S 6 810×P 770×P 21 2.8
    VGFZ125-200 16 1080×P 1000×P 30 6
    VGFZ125-200-S 8 1960×P 1830×P 55 6
    VGFZ160-250 25 1300×P 1250×P 31 10.5
    VGFZ160-250-S 14 2260×P 2170×P 55 10.5
    VGFZ185-292 30 1750×P 1600×P 50 18
    VGFZ185-292-S 17 3470×P 3280×P 100 18
    VGFZ220-352 35 2900×P 2800×P 80 34
    VGFZ220-352-S 20 4500×P 4340×P 130 34
    VGFZ290-430 45 4400×P 4000×P 130 71
    VGFZ290-430-S 26 8000×P 7700×P 220 73
    VGFZ34-68
    Stroke per jaw: 6 mm
    Opening force: 76×P N
    Closing force: 69×P N
    Workpiece weight: 1.7 kg
    Gripper weight: 0.35 kg
    Download Files
    STEP PDF 3D
    VGFZ42-78
    Stroke per jaw: 6 mm
    Opening force: 116×P N
    Closing force: 106×P N
    Workpiece weight: 3 kg
    Gripper weight: 0.5 kg
    Download Files
    STEP PDF 3D
    VGFZ55-100
    Stroke per jaw: 8 mm
    Opening force: 198×P N
    Closing force: 172×P N
    Workpiece weight: 5 kg
    Gripper weight: 0.8 kg
    Download Files
    STEP PDF 3D
    VGFZ55-100-S
    Stroke per jaw: 4 mm
    Opening force: 396×P N
    Closing force: 344×P N
    Workpiece weight: 10 kg
    Gripper weight: 0.8 kg
    Download Files
    STEP PDF 3D
    VGFZ70-125
    Stroke per jaw: 10 mm
    Opening force: 310×P N
    Closing force: 280×P N
    Workpiece weight: 8 kg
    Gripper weight: 1.6 kg
    Download Files
    STEP PDF 3D
    VGFZ70-125-S
    Stroke per jaw: 5 mm
    Opening force: 650×P N
    Closing force: 600×P N
    Workpiece weight: 18 kg
    Gripper weight: 1.7 kg
    Download Files
    STEP PDF 3D
    VGFZ90-155
    Stroke per jaw: 13 mm
    Opening force: 515×P N
    Closing force: 490×P N
    Workpiece weight: 15.5 kg
    Gripper weight: 2.7 kg
    Download Files
    STEP PDF 3D
    VGFZ90-155-S
    Stroke per jaw: 6 mm
    Opening force: 810×P N
    Closing force: 770×P N
    Workpiece weight: 21 kg
    Gripper weight: 2.8 kg
    Download Files
    STEP PDF 3D
    VGFZ125-200
    Stroke per jaw: 16 mm
    Opening force: 1080×P N
    Closing force: 1000×P N
    Workpiece weight: 30 kg
    Gripper weight: 6 kg
    Download Files
    STEP PDF 3D
    VGFZ125-200-S
    Stroke per jaw: 8 mm
    Opening force: 1960×P N
    Closing force: 1830×P N
    Workpiece weight: 55 kg
    Gripper weight: 6 kg
    Download Files
    STEP PDF 3D
    VGFZ160-250
    Stroke per jaw: 25 mm
    Opening force: 1300×P N
    Closing force: 1250×P N
    Workpiece weight: 31 kg
    Gripper weight: 10.5 kg
    Download Files
    STEP PDF 3D
    VGFZ160-250-S
    Stroke per jaw: 14 mm
    Opening force: 2260×P N
    Closing force: 2170×P N
    Workpiece weight: 55 kg
    Gripper weight: 10.5 kg
    Download Files
    STEP PDF 3D
    VGFZ185-292
    Stroke per jaw: 30 mm
    Opening force: 1750×P N
    Closing force: 1600×P N
    Workpiece weight: 50 kg
    Gripper weight: 18 kg
    Download Files
    STEP PDF 3D
    VGFZ185-292-S
    Stroke per jaw: 17 mm
    Opening force: 3470×P N
    Closing force: 3280×P N
    Workpiece weight: 100 kg
    Gripper weight: 18 kg
    Download Files
    STEP PDF 3D
    VGFZ220-352
    Stroke per jaw: 35 mm
    Opening force: 2900×P N
    Closing force: 2800×P N
    Workpiece weight: 80 kg
    Gripper weight: 34 kg
    Download Files
    STEP PDF 3D
    VGFZ220-352-S
    Stroke per jaw: 20 mm
    Opening force: 4500×P N
    Closing force: 4340×P N
    Workpiece weight: 130 kg
    Gripper weight: 34 kg
    Download Files
    STEP PDF 3D
    VGFZ290-430
    Stroke per jaw: 45 mm
    Opening force: 4400×P N
    Closing force: 4000×P N
    Workpiece weight: 130 kg
    Gripper weight: 71 kg
    Download Files
    STEP PDF 3D
    VGFZ290-430-S
    Stroke per jaw: 26 mm
    Opening force: 8000×P N
    Closing force: 7700×P N
    Workpiece weight: 220 kg
    Gripper weight: 73 kg
    Download Files
    STEP PDF 3D
    *P - the air pressure
    VGTZ-L

    VGTZ-L

    VGTZ-L series centric grippers with "T" guide and extended jaw stroke. Designed for large workpieces, providing high precision and reliable gripping. Gripper fingers quantity: 3
    All about VGTZ-L series in PDF
    Model Stroke per jaw, mm Opening force, N Closing force, N Workpiece weight, kg Gripper weight, kg STEP PDF 3D
    VGTZ33-74-L 8 64×P 60×P 1.2 0.35
    VGTZ42-90-L 11 104×P 94×P 2.5 0.7
    VGTZ55-113-L 15 180×P 168×P 4.5 1.25
    VGTZ75-136-L 20 330×P 316×P 8 2.1
    VGTZ33-74-L
    Stroke per jaw: 8 mm
    Opening force: 64×P N
    Closing force: 60×P N
    Workpiece weight: 1.2 kg
    Gripper weight: 0.35 kg
    Download Files
    STEP PDF 3D
    VGTZ42-90-L
    Stroke per jaw: 11 mm
    Opening force: 104×P N
    Closing force: 94×P N
    Workpiece weight: 2.5 kg
    Gripper weight: 0.7 kg
    Download Files
    STEP PDF 3D
    VGTZ55-113-L
    Stroke per jaw: 15 mm
    Opening force: 180×P N
    Closing force: 168×P N
    Workpiece weight: 4.5 kg
    Gripper weight: 1.25 kg
    Download Files
    STEP PDF 3D
    VGTZ75-136-L
    Stroke per jaw: 20 mm
    Opening force: 330×P N
    Closing force: 316×P N
    Workpiece weight: 8 kg
    Gripper weight: 2.1 kg
    Download Files
    STEP PDF 3D
    *P - the air pressure
    VGTZF

    VGTZF

    VGTZF series centering grippers with toothed guide and IP67 protection rating, jaw stroke from 6 mm to 8 mm. Working weight of gripped part from 2.6 kg to 4.5 kg. Number of fingers – 3
    All about VGTZF series in PDF
    Model Stroke per jaw, mm Opening force, N Closing force, N Workpiece weight, kg Gripper weight, kg STEP PDF 3D
    VGTZF42 6 116×P 106×P 2.6 0.7
    VGTZF55 8 200P 172P 4.5 1.3
    VGTZF42
    Stroke per jaw: 6 mm
    Opening force: 116×P N
    Closing force: 106×P N
    Workpiece weight: 2.6 kg
    Gripper weight: 0.7 kg
    Download Files
    STEP PDF 3D
    VGTZF55
    Stroke per jaw: 8 mm
    Opening force: 200P N
    Closing force: 172P N
    Workpiece weight: 4.5 kg
    Gripper weight: 1.3 kg
    Download Files
    STEP PDF 3D
    *P - the air pressure
    VGTF

    VGTF

    VGTF series centric grippers with "T" guide, jaw stroke from 4 mm to 13 mm. Workpiece operating weight from 1.5 kg to 14 kg. Gripper fingers quantity: 4
    All about VGTF series in PDF
    Model Stroke per jaw, mm Opening force, N Closing force, N Workpiece weight, kg Gripper weight, kg STEP PDF 3D
    VGTF33-56 4 74×P 68×P 1.5 0.3
    VGTF42-71 6 120×P 108×P 3 0.55
    VGTF55-99 8 200×P 186×P 4.5 1.1
    VGTF75-118 10 386×P 370×P 9 1.6
    VGTF95-145 13 620×P 590×P 14 2.9
    VGTF33-56
    Stroke per jaw: 4 mm
    Opening force: 74×P N
    Closing force: 68×P N
    Workpiece weight: 1.5 kg
    Gripper weight: 0.3 kg
    Download Files
    STEP PDF 3D
    VGTF42-71
    Stroke per jaw: 6 mm
    Opening force: 120×P N
    Closing force: 108×P N
    Workpiece weight: 3 kg
    Gripper weight: 0.55 kg
    Download Files
    STEP PDF 3D
    VGTF55-99
    Stroke per jaw: 8 mm
    Opening force: 200×P N
    Closing force: 186×P N
    Workpiece weight: 4.5 kg
    Gripper weight: 1.1 kg
    Download Files
    STEP PDF 3D
    VGTF75-118
    Stroke per jaw: 10 mm
    Opening force: 386×P N
    Closing force: 370×P N
    Workpiece weight: 9 kg
    Gripper weight: 1.6 kg
    Download Files
    STEP PDF 3D
    VGTF95-145
    Stroke per jaw: 13 mm
    Opening force: 620×P N
    Closing force: 590×P N
    Workpiece weight: 14 kg
    Gripper weight: 2.9 kg
    Download Files
    STEP PDF 3D
    *P - the air pressure
