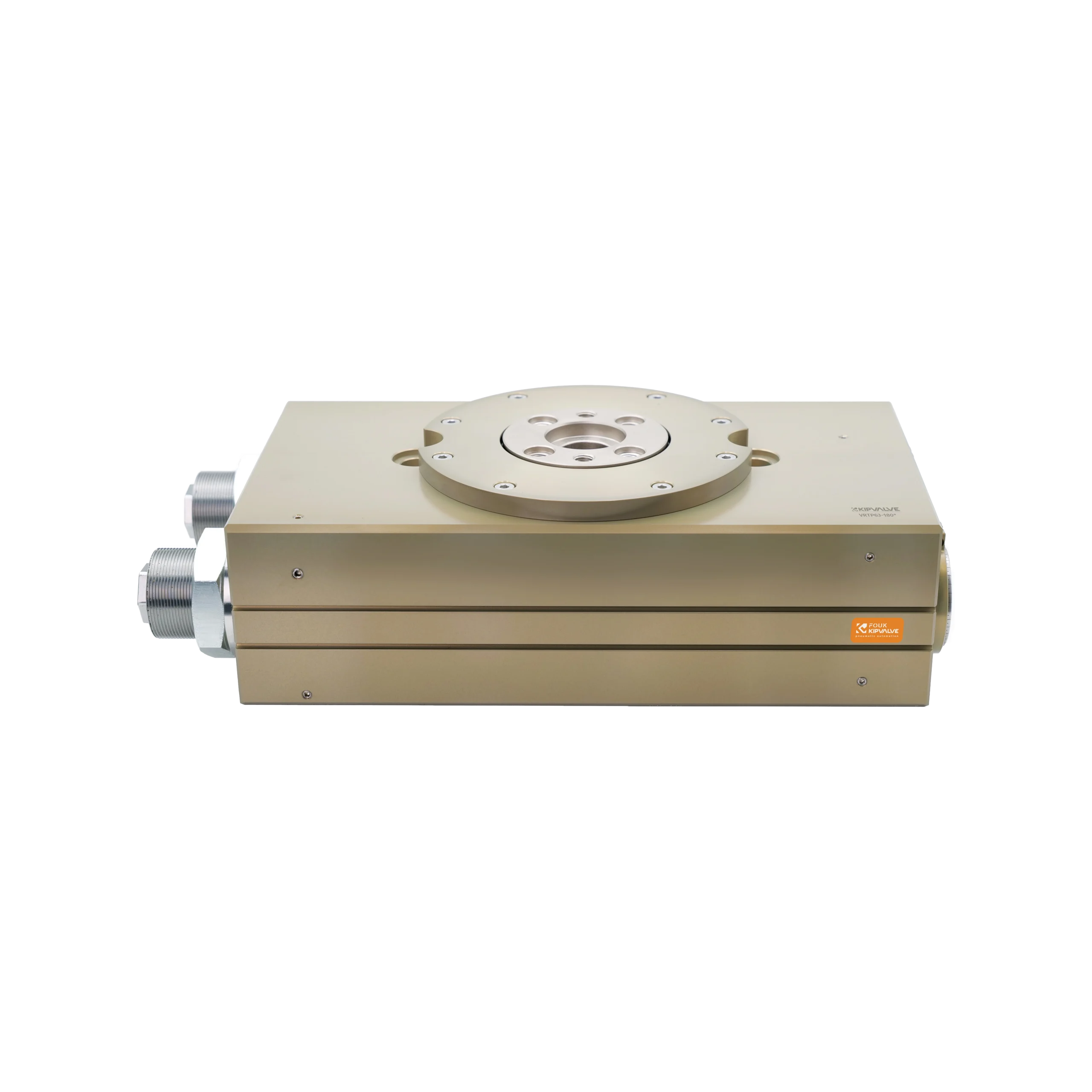

VRTP63
Key specifications
- Rotation angle, (°)
- 90/180
- Effective torque
- 15.6xP N-m
-
Additional specifications VRTP63
SpecificationsBase versionVRTP63Adjustment range of rotation angle ±30 ° Maximum allowable kinetic energy 25 J Repeated gripping accuracy ± 0.05 mm Air connection port of air distribution pipe G1/4 Specification of buffer unit M45 Hydraulic buffer Rotation time 1.5~6 sec P: Operating air pressure 3~8 bar Operating temperature -5~60 °C Protection rating IP65 Product weight 20.15 kg Base versionVRTP63 Base version- Adjustment range of rotation angle
- ±30 °
- Maximum allowable kinetic energy
- 25 J
- Repeated gripping accuracy
- ± 0.05 mm
- Air connection port of air distribution pipe
- G1/4
- Specification of buffer unit
- M45 Hydraulic buffer
- Rotation time
- 1.5~6 sec
- P: Operating air pressure
- 3~8 bar
- Operating temperature
- -5~60 °C
- Protection rating
- IP65
- Product weight
- 20.15 kg
-
Dimensions & Drawings VRTP63
Чертеж для данного товара отсутствует.
