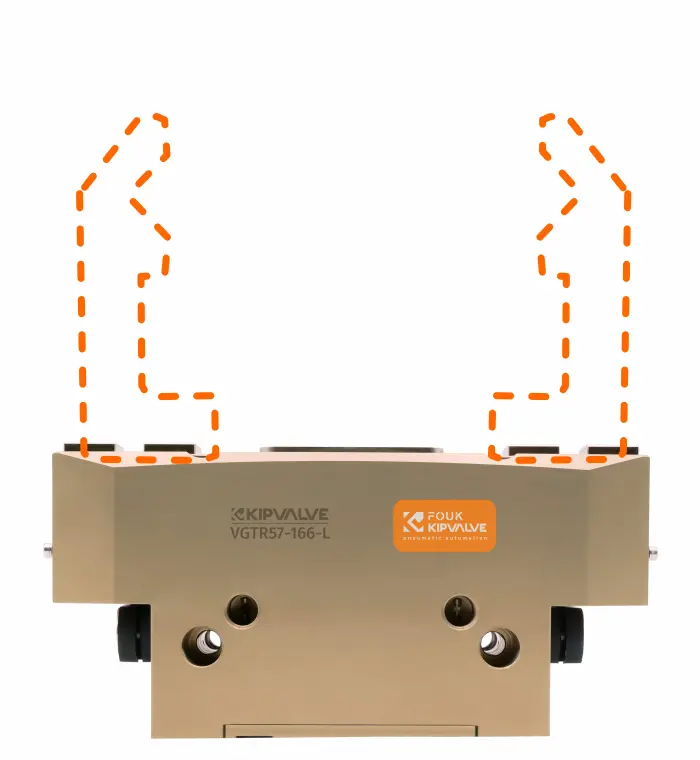

VGTR57-166-L
VGTR-L series parallel grippers with a “T” guide and extended jaw travel from 15 mm to 32 mm.
Key specifications
- Workpiece weight
- 5.5 kg
- Stroke per jaw
- 24 mm
- Opening force
- 200×P N
- Closing force
- 184×P N
- Gripper weight
- 2.1 kg
-
Additional specifications VGTR57-166-L
SpecificationsBase versionVGTR57-166-LNumber of fingers 2 pcs Principle of Operation "T" guide Maximum finger opening 150 mm Maximum allowable single-finger gripping weight 0.6 kg Theoretical maximum gripping force: opening/closing 200P/184P N Opening/closing time 0.18/0.18 sec Repeated gripping accuracy ± 0.02 mm Air consumption per cycle 0.74 l P: Operating air pressure 3~7 bar Operating temperature 0~60 °C Protection rating IP40 Base versionVGTR57-166-L Base version- Number of fingers
- 2 pcs
- Principle of Operation
- "T" guide
- Maximum finger opening
- 150 mm
- Maximum allowable single-finger gripping weight
- 0.6 kg
- Theoretical maximum gripping force: opening/closing
- 200P/184P N
- Opening/closing time
- 0.18/0.18 sec
- Repeated gripping accuracy
- ± 0.02 mm
- Air consumption per cycle
- 0.74 l
- P: Operating air pressure
- 3~7 bar
- Operating temperature
- 0~60 °C
- Protection rating
- IP40
CONFIGURATION OPTIONS- B: Bottom ventilation
- P: IP64 protection rating with dust cover
- H: High-temperature resistance
-
